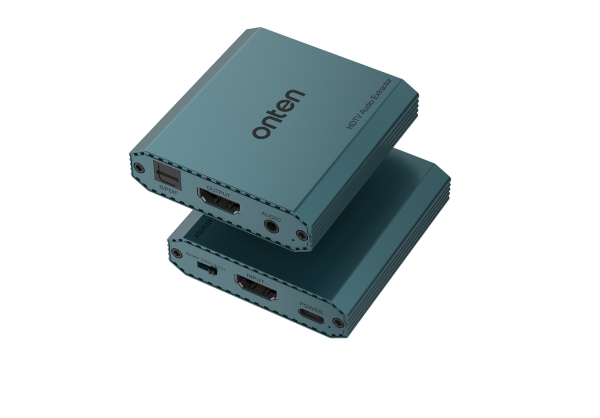

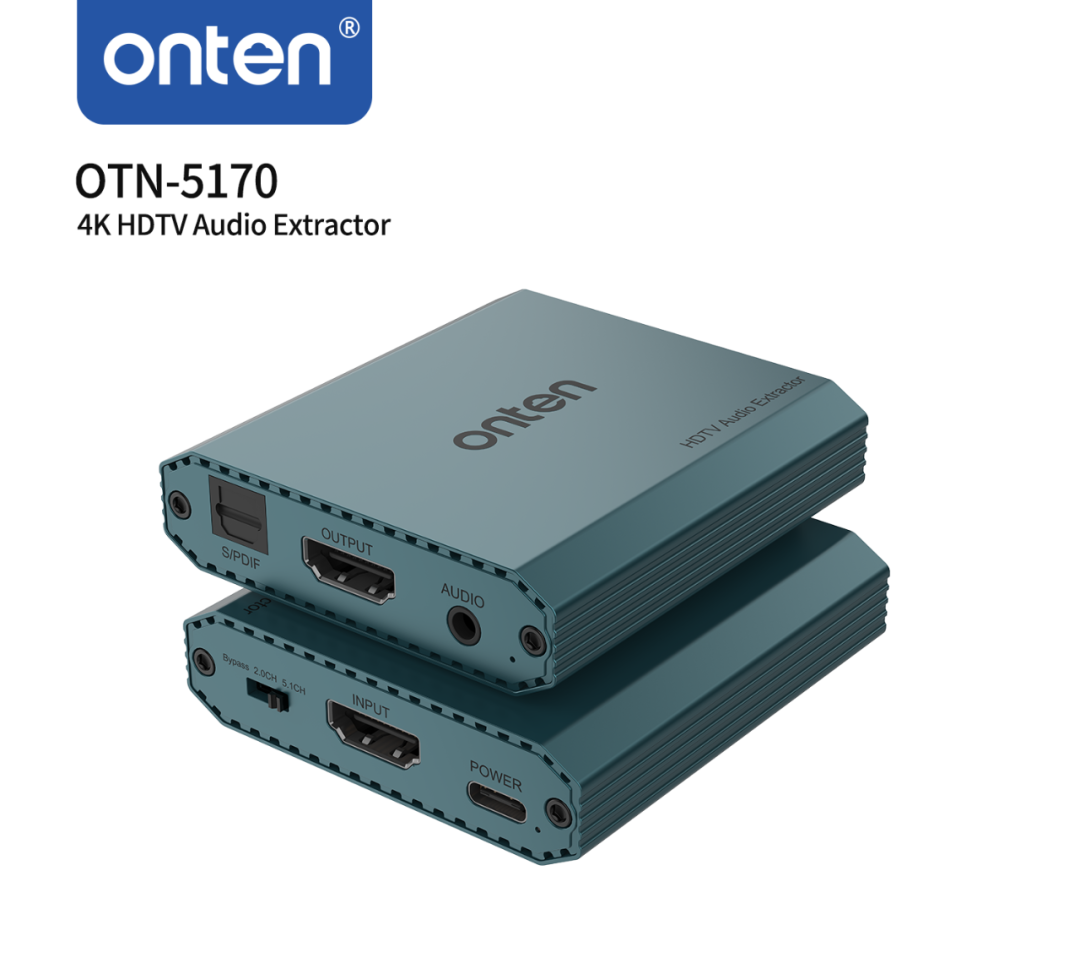

Onten OTN-5170 4K HDMI Audio Extractor (HDMI to HDMI + Optical + 3.5mm AUX)

🔧 General Specifications

• Model: OTN-5170
• Type: HDMI Audio Extractor
• Brand: Onten
• Material: ABS Plastic
• Color: Black

🔌 Ports & Connectivity

• Input Port:
  • 1 × HDMI (Input)
• Output Ports:
  • 1 × HDMI (Video Pass-through)
  • 1 × Optical (SPDIF)
  • 1 × 3.5mm AUX Audio Jack

🎥 Video Support

• Maximum Resolution: Up to 4K @ 60Hz (Ultra HD)
• Function: HDMI pass-through (no video loss while extracting audio)

🔊 Audio Support

• Supported Audio Formats:
  • PCM / LPCM
  • AAC
  • DTS
  • DSD
  • Dolby Audio
• Channel Support:
  • 2.0 / 2.1 / 5.1 / 7.1 channels
• Output-Specific Notes:
  • Optical (SPDIF): Supports multi-channel audio (up to 5.1)
  • 3.5mm AUX: Stereo (2.0 channel) output

⚡ Power

• Power Supply: 5V via USB
• Plug & Play: No drivers required

🎮 Compatibility

Works with:

• TVs & Smart TVs
• Soundbars & Speakers
• AV Receivers
• Gaming Consoles (PS5, Xbox)
• Laptops / PCs
• Projectors & Media Players

💡 Key Features

• Extracts audio from HDMI signal to Optical + 3.5mm simultaneously
• Maintains full 4K video output
• Supports both digital and analog audio systems
• Ideal for connecting modern HDMI devices to older audio equipment

📦 Typical Use Case

• Connect a console/TV → HDMI extractor →
  • HDMI to display
  • 3.5mm or Optical to speakers/sound system
